Copimac dl-300c
Technical Details

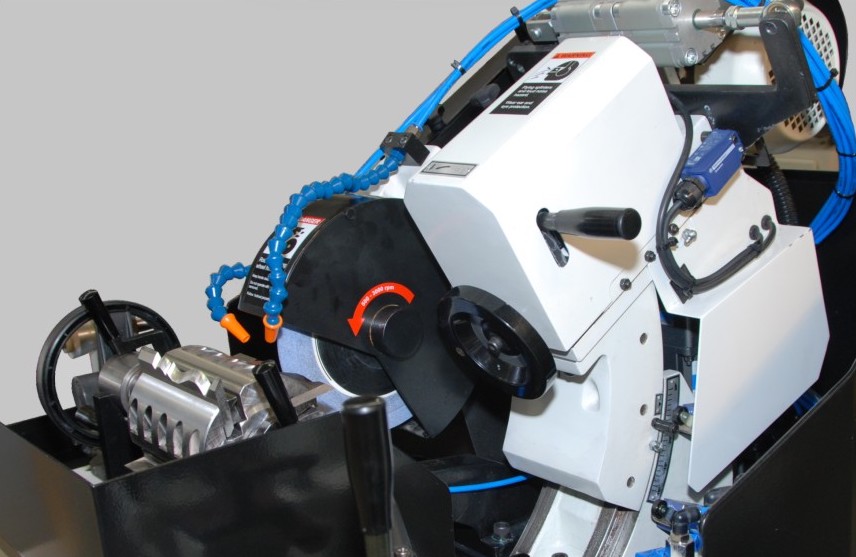

Creating their own profiles ceased to be a mystery after COPIMAC dl300 was created. The flexibility that this sharpener provides for the copying of any type of blade shape in fast steel as well as in hard metal, is not comparable to any other in the market. Since its smoothness of movement, electronic speed variator, and its diamond system OF CONSTANT ORDER POINT, are necessary conditions to obtain the necessary repeatability in the shape and dimensions that a molding needs.

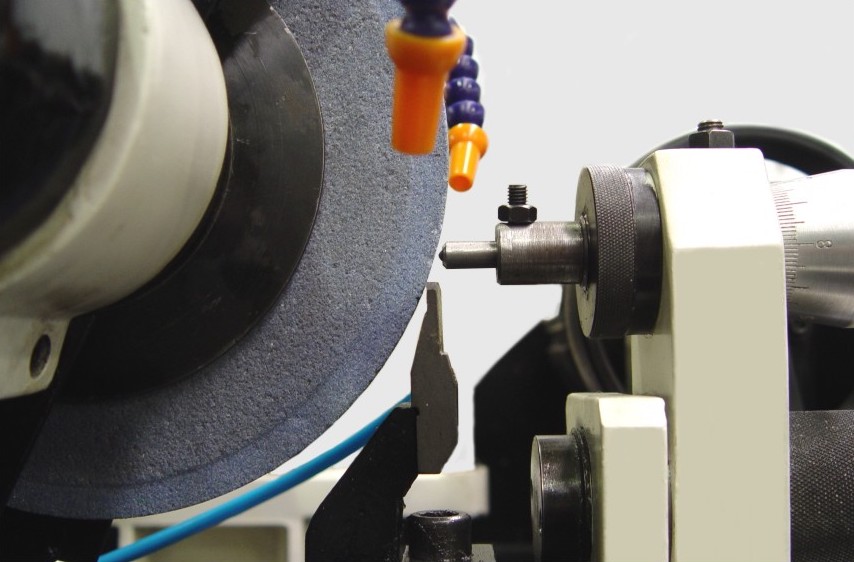

CONSTANT ORIGIN POINT: It is a real advantage when it comes to diamond cutting our sharpening stone, since the tip of the diamond remains in the same position and it is the sharpening stone that moves towards the diamond. This system allows us to know and keep the stone at the same distance from the blade support.

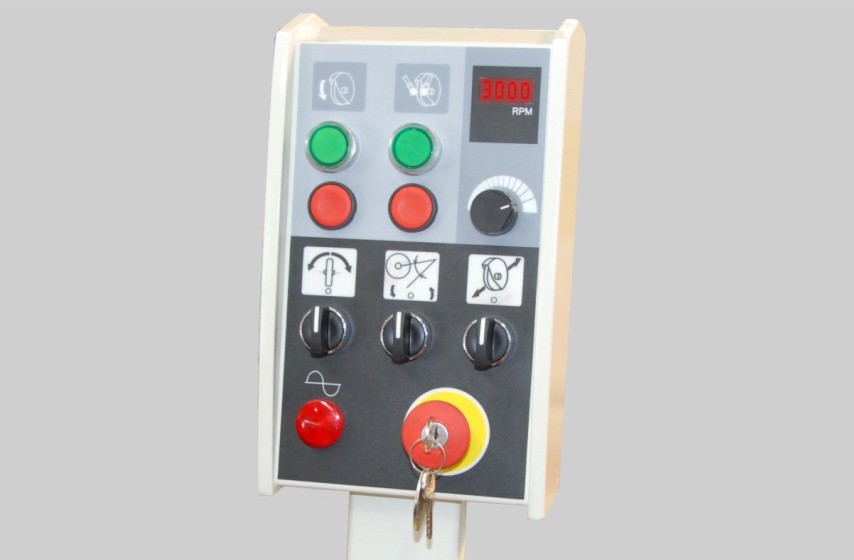

Sharpening stone speed system controlled by electronic frequency inverter. These speed values are adjusted by a pteniometer located on the control panel.
Technical Specifications
Max. Diameter of Tool | |
---|---|
300 mm | |
Min. Tool Diameter | |
100 mm | |
Max Length of Tool | |
240 mm (opcional 305 mm) | |
Blade Angle | |
35º - 65º | |
Range of Movement Adjustment | |
50 mm | |
Offloading Angle | |
± 30º | |
Electronically Variable Speed | |
1500-3000 rpm | |
Spindle Motor | |
3 hp | |
Liquid Coolant Pump (Tank) | |
60 lts | |
Abrasive Located on Table | |
Abrasive Location is Constant | |
Tamaño de copiadores | |
2, 3, 4 mm en V | |
Max-Min Diameter of Sharpening Tooth | |
150-225 mm | |
Internal diameter of whetstone | |
60 mm | |
Blade with Constant Axial | |
Standard | |
Extra Blades | |
2 | |
Tool Holding Axis | |
1 |
