Technical Details

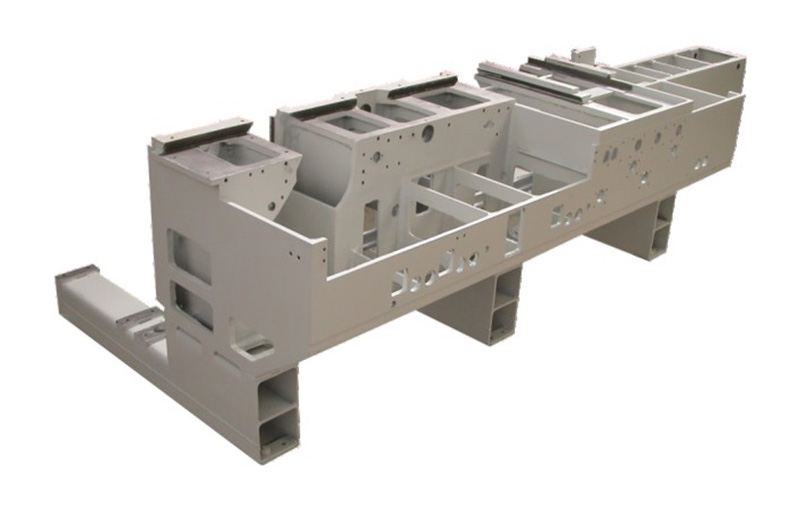

The cast body as a cast iron monoblock guarantees a unique stability when machining high-quality products at high feed rates.

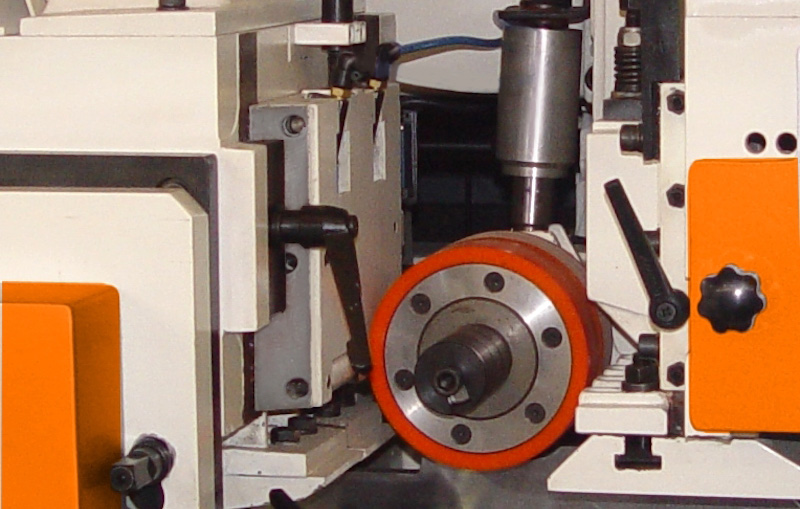

Pneumatic upper horizontal entry clamp with very easy adjustment, when it is necessary to adjust it to different cutting circles in short times.

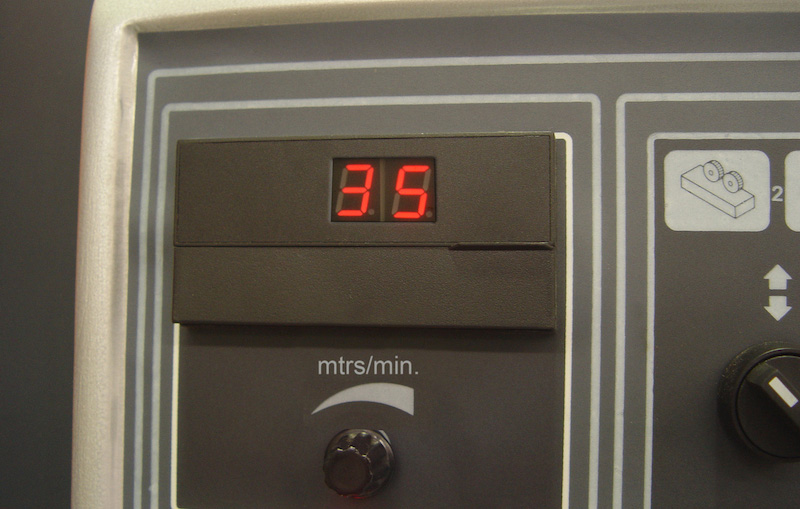

Feed speed system controlled by electronic frequency inverter, indicated on the control panel by an electronic meter regulated by a potentiometer.

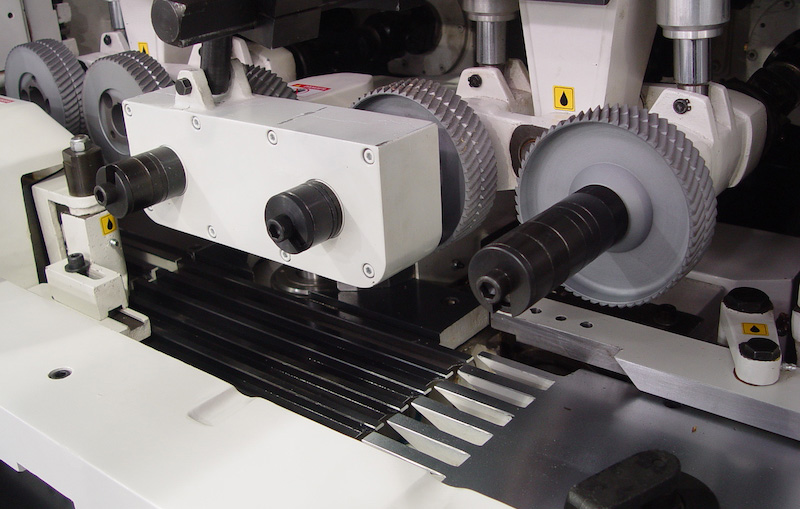

Top drag device for extremely short parts. Mechanism that allows us by extra tons to process very short pieces with tight machining tolerances.
Gimbal feed system, with high-strength gearboxes, gives the machine great drag safety. Individual motors for each spindle, supported by robust cast iron supports.

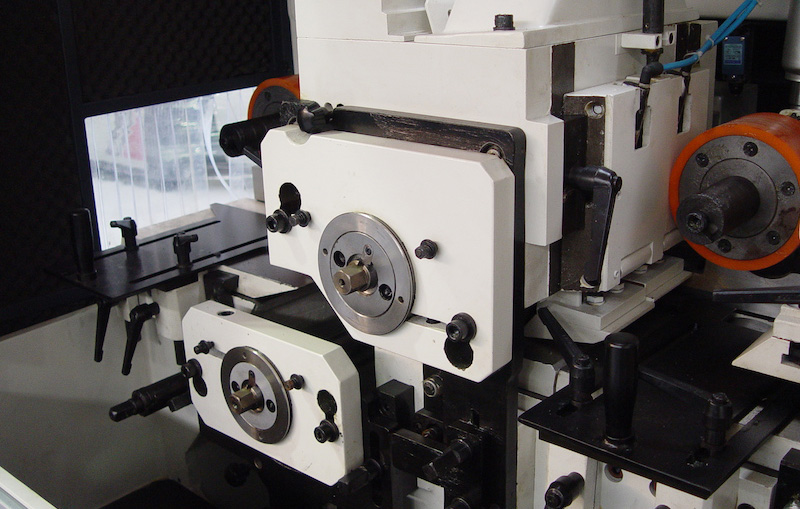

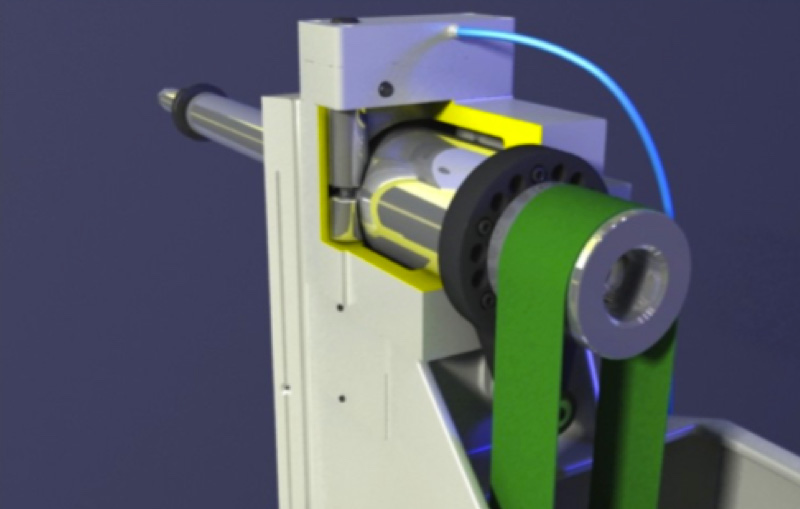

Hydraulically counter-supported ends ensure absolute rigidity, allowing mexanize wide pieces at high speed while maintaining excellent termination. The axial adjustment is performed without removing the hydraulic pressure.
Optional, chrome tables and guides for the work of abrasive materials, such as MDF, prolonging its utility for many more years.
Slotted tables, essential for the machining of short pieces, for example. parquet and also to straighten wood on its sides.

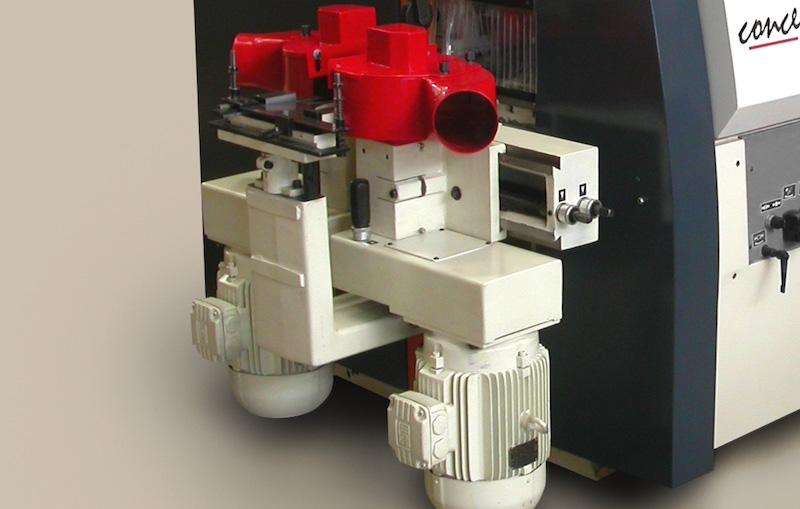

Splitter saw module at the exit very useful for opening wood, ex. Double machimbre and raw material optimization.

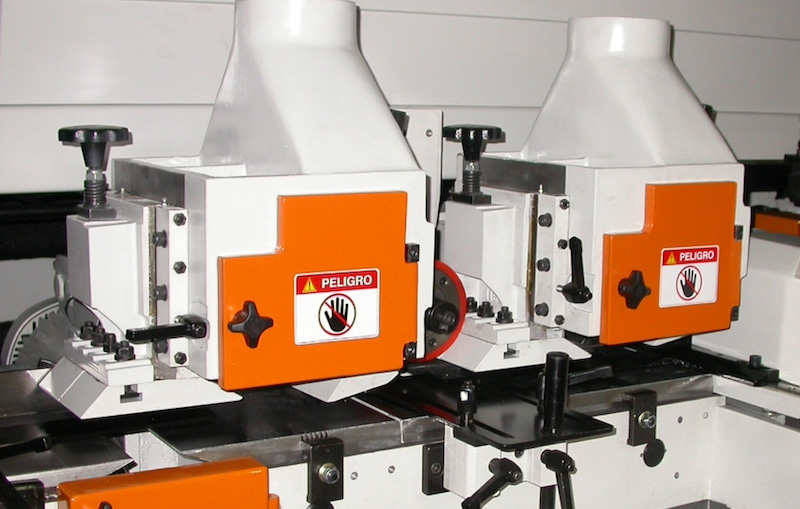

Exit rigors of great rigidity, allowing these deep cuts of wood with a great stability of the same.

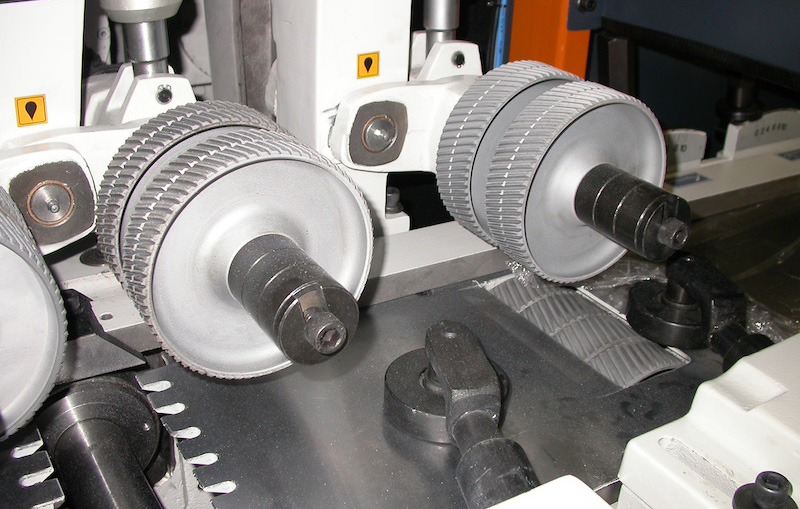

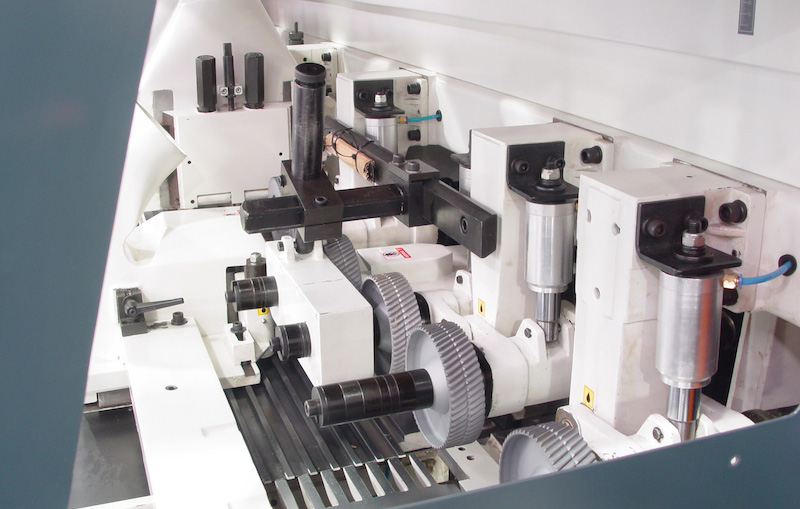

Robust system of continuous upper and lower traction, allows excellent drag from small parts to large beams.
Individual pneumatic locking of the axial movement of the horizontal axes that allows adjusting the axes from outside the machine with the cab closed, simply with the movement of a valve.

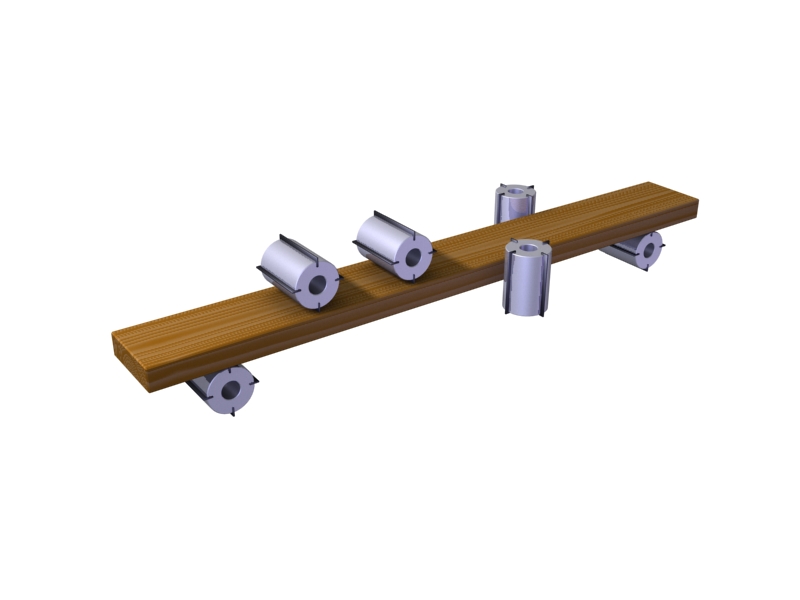

Axis Configuration
Concept dl-3006

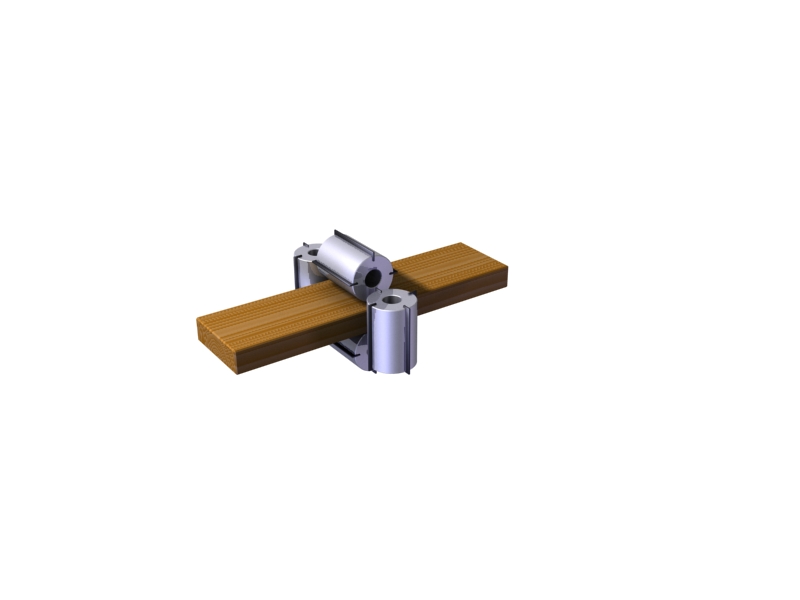

Universal

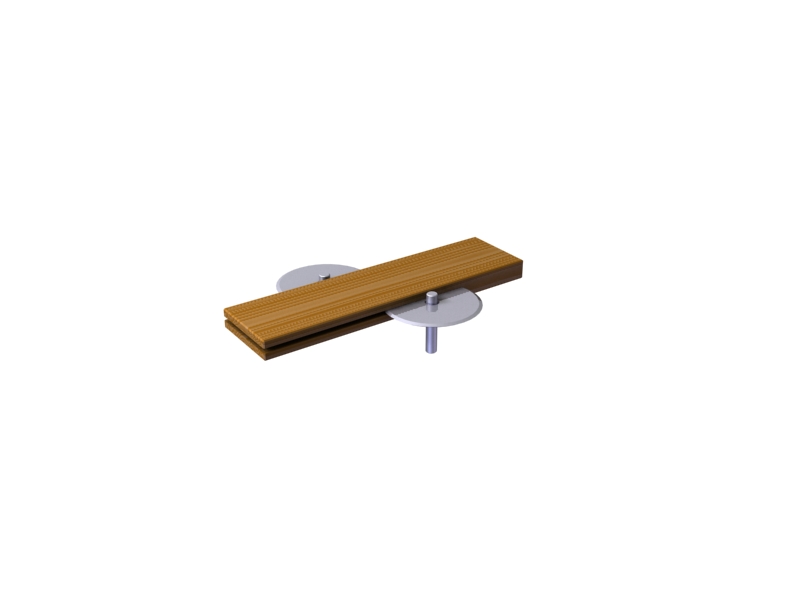

Splitter
Technical Specifications
Working Width Min. Max. (Tool Diameter 140 mm) |
---|
20-230 mm |
Working Height Min. Max. (Tool Diameter 140 mm) |
6-125 mm |
Number of Spindles min-max |
5-10 |
Spindle Speed |
6000 rpm |
Cutting Circle Horiz. Max.Min. (exc. 1st horiz inf Ø180mm) |
110-200 mm |
Cutting Circle (Vertical) Min-Max |
110-200 mm |
Spindle Diameter (Hardened) |
40 mm |
Frequency Controlled Feed Speed |
5-35 m/min |
Adjustment Range for Infeed Bed Plate and Fence |
10 mm |
Axial Movement for Horizontal-Vertical Spindles |
22 mm |
Feed Rolls Diameter |
140 mm |
Max. Pneumatic Pressure |
6 bar |
Infeed Table Length |
2000 mm |
Min. Stock Length |
228 mm |
Upper and Lower Driven Feedrolls | |
Bedplates exchangable and adjustable to tool | |
Cardan Drive System | |
Air Loaded Receding Chipbreaker in Front of Spindles | |
Air Loaded Automatica Oil Pump | |
Centralized Lubrication Points | |
Pneumatic Clutch (Top Spindles + Feed Rolls) | |
Remote Controls for Emergency Stop, Feed Jog and Feed Works | |
Full Sound and Safety Enclosure |
Motor Horsepower
1st Bottom Horizontal | |
---|---|
7.5-25 hp | |
Left Vertical | |
7.5-12.5 hp | |
Right Vertical | |
7.5-12.5 hp | |
Top Horizontal | |
10-25 hp | |
Segundo Horizontal Superior | |
10-25 hp | |
Segundo Horizontal Inferior | |
7.5-25 hp | |
Universal | |
7.5-12.5 hp | |
Elevation | |
2 hp | |
Feed Drive | |
5.5-10 hp |
Options
Linear Jointer |
Form Jointer |
Hydraulic Support on Horizontal Axes (except 1st Lower Horizontal) |
Motor repowering |
Hard chrome on tables and guides |
Slotted tables |
Roller feed extension |
Shaft Diameter 50mm |
Higher spindle rotation speed up to 8000 rpm |
Short Entry Table |
Multi Voltages |
